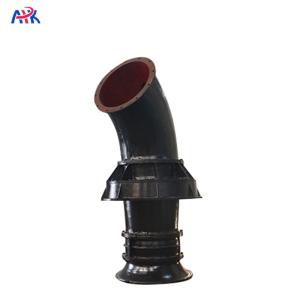

The large flow vertical axial flow propeller pump, surface installed, named ZLB in China. Also, we have submerged type if you are in demand. ZLB series pump are single-stage,vertical axial flow pump,with the liquid flowing in axial direction.The pumps are used to transfer clean water or other liquid with similar physical and chemical properties to those of water. The highest temperature of the transferred liquid can be 50. The ZL pumps have large capacity and low head, which is widely used in agriculture irrigation, civil water supply and drainage, water circulation in industrial power station, dock water level control and other conservancy projects.
Mixed flow water pump for drainage:
Mixed flow pump specifications:
| Flow | Head | Shaft Power | Impeller Dia |
| l/s | m | kw | mm |
280
300
325 | 6
5.15
3.75 | 21
19.9
17.1 | 296 |
305
355
380 | 6
4.43
3.20 | 24
18.8
15.6 | 300 |
340
354
393 | 8.2
7.45
5.5 | 34.9
33.1
28.6 | 300 |
583
600
696 | 6.82
6.43
4.12 | 48.79
46.58
36.51 | 450 |
430
506
545 | 3.63
4.56
1.94 | 20.6
16
13.3 | 450 |
529
762
866 | 8.48
5.44
3.13 | 59.4
47.8
35.9 | 450 |
851
805
745 | 2.14
2.75
3.35 | 22.2
26.6
30.8 | 450 |
698
750
794 | 6.3
5.23
4.1 | 49.85
47.16
41.98 | 450 |
479
559
625 | 8.08
6.30
4.68 | 50.93
43.16
36.53 | 450 |
Mixed flow water pump features:
1. Optimized elbow passage of better hydraulic performance.
2. Adjustable impeller of high efficiency and wide high efficiency zone.
3. Low pump speed design conforms to the technological requirements of salting out and low temperature crystallization.
4. Cost saving butt welding technology to satisfy requirements of both transmission strength and anti-corrosion.
5. This product is adopted in 95% combined soda process in China. And there are plenty of real sales achievements from flow rate 300 m3/h to 8000 m3/h.
6. Special design to adapt to different applications.For example,increasing the pressure of system and increasing the liquid level,forced circulation purpose.
Mixed flow water pump applications:
1. Agriculture irrigation
2. Water conservancy
3. Water supply
4. Drainage of civil engineering
5. Farmlands
6. Pollution treatment as well as used in salt factories, raise
7. Power station
8. Docks for water lifting and falling
9. Metallurgy and chemical industry.
Mixed flow water pump structure:
1. ZLB series is a typical vertical axial flow pump of vertical installation which takes small room on floor.
2. Pump impeller end is immersed in the fluid which enables direct start without filling water or vacuum pumping.
3. Simple structure,convenient maintenance.
4. Direct coupled transmission or gear box transmission.
5. Dynamic sealing+packing for shaft sealing
